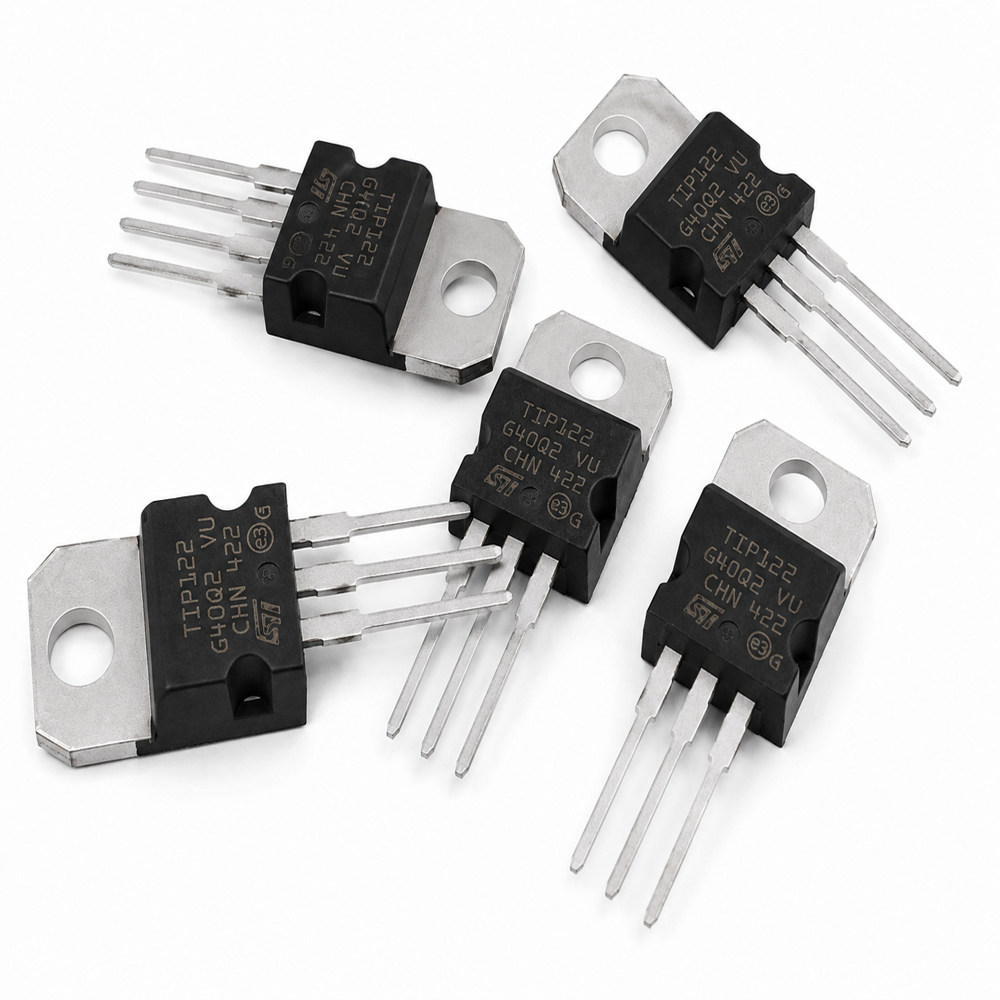

Power Switching Transistor for Industrial Electronics

Send Inquiry

Request To Call Back

Power Switching Transistor for Industrial Electronics

Price 12.0 INR/ Piece

Get a Price/Quote

MOQ : 200 Pieces

Power Switching Transistor for Industrial Electronics Specification

Power Source
External Circuit

Usage
Switching, Amplification, Power Regulation

Output
Collector (C), Emitter (E)

Operating Temperature
-65C to +150C Celsius (oC)

Components
Transistor Only

Input
Base (B)

Thermal Conductivity
Junction to Case: 3 C/W Calorie (IT)/second/centimeter/°C

Interface
Through Hole

Power Supply
DC

Response Time
Fast Switching Months

Features
High current gain, Low saturation voltage, TO-220 package

Product Type
Transistor

Application
Switching circuits, Motor drivers, Linear regulators, Power amplifiers

Rated Voltage
100V Volt (V)

Supply Voltage
Up to 100V Volt (v)

Size
TO-220 Package

Dimension (L*W*H)
~15.6mm x 10.1mm x 4.7mm Millimeter (mm)

Function
NPN Darlington Power Transistor

Color
Black (Body)

Weight
Approx. 2g (each) GSM (gm/2)

Phase
3 Phase

Material
Semiconductor / Molded Package

Capacity
5A Continuous Collector Current Kg/hr

Current Rating
5A

Thickness
Standard TO-220 Feet (ft)

Frequency
High Speed Switching Milihertz

Lead Form
Straight

Pin Configuration
1. Base 2. Collector 3. Emitter

Packaging
Plastic Box, Bulk

Saturation Voltage (Vce(sat))
2V (max) at 5A

DC Collector Current (Ic)
5A

Collector Dissipation (Pc)
65W

RoHS Compliant
Yes

Collector-Emitter Voltage (Vce)
100V

Collector-Base Voltage (Vcb)
100V

DC Current Gain (hFE)
>1000

Mounting Type
Through Hole

Emitter-Base Voltage (Veb)
5V

Power Switching Transistor for Industrial Electronics Trade Information

Minimum Order Quantity
200 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
2 Days

Main Domestic Market
All India

About Power Switching Transistor for Industrial Electronics

The TIP122 NPN Darlington Power Transistor is an advanced, superb component designed for demanding switching and amplification tasks. Highly popular among engineers for its towering current capacity of 5A and lustrous high gain (>1000 hFE), this device guarantees stable performance in motor drivers, linear regulators, and power amplifiers. Its 100V voltage rating and robust TO-220 package ensure reliable operation even in intense environments. Due to its scarce availability, an advance purchase is recommended to secure this RoHS-compliant, versatile and efficient power transistor.

Applications and Exceptional Features

The TIP122 NPN Darlington Power Transistor excels in switching circuits, motor drivers, and linear regulators, offering high-speed performance and power regulation. Widely used for its superb current gain and low saturation voltage, it is an optimal choice for amplification and fast switching circuits. The device's extra features include a lustrous collector dissipation of 65W, RoHS compliance, and a robust through-hole mounting, making it ideal for both industrial and educational projects.

Packaging, Certification, and Delivery Details

Each TIP122 transistor is securely packaged in a plastic box or bulk for reliable handover. We partner with recognized domestic transport services for swift delivery across India. Our supply is RoHS certified, ensuring compliance with strict quality standards. Expect your advanced power transistors to arrive within the specified delivery timeline, providing peace of mind and seamless integration into your production cycle.

FAQ's of TIP122 NPN Darlington Power Transistor 100V 5A TO-220 High Gain Switching Transistor:

Q: How can the TIP122 NPN Darlington Power Transistor be used in electronic applications?

A: The TIP122 transistor is ideal for high-current, high-gain switching applications such as power amplifiers, motor drivers, and linear regulators. It is commonly used where efficient power switching and regulation are required.

Q: What are the main benefits of using the TIP122 transistor?

A: The main benefits of the TIP122 include its towering current handling (5A), superb high gain (>1000 hFE), low saturation voltage, and excellent thermal conductivity, which enable reliable operation in demanding environments.

Q: Where can I purchase this scarce component and is advance purchase necessary?

A: Due to its popularity and limited stock, it is advisable to secure the TIP122 via advance purchase from authorized suppliers, manufacturers, or wholesalers in India or through reputable online retailers.

Q: What packaging and certifications should I expect when ordering the TIP122 transistor?

A: Each TIP122 is delivered in safe plastic boxes or bulk packaging, and it comes RoHS compliant, ensuring it meets stringent environmental and quality standards.

Q: What is the expected delivery process for domestic orders?

A: Upon order confirmation, products are securely handed over to reliable domestic transport services, ensuring prompt shipment and safe arrival at your location within the stipulated timeline.

TIP122 Transistor, NPN Power Transistor, Darlington Transistor, NPN Darlington Power Transistor, Power Switching Transistor, Electronic Circuit Transistor, TO-220 Transistor, General Purpose Transistor, High Gain Transistor, Power Control Transistor, Electronic Components, PCB Repair Components, Motor Control Transistor, Voltage Control Transistor, Switching Circuit Component, Industrial Electronics Component, Power Amplifier Transistor, Electronic Repair Parts
