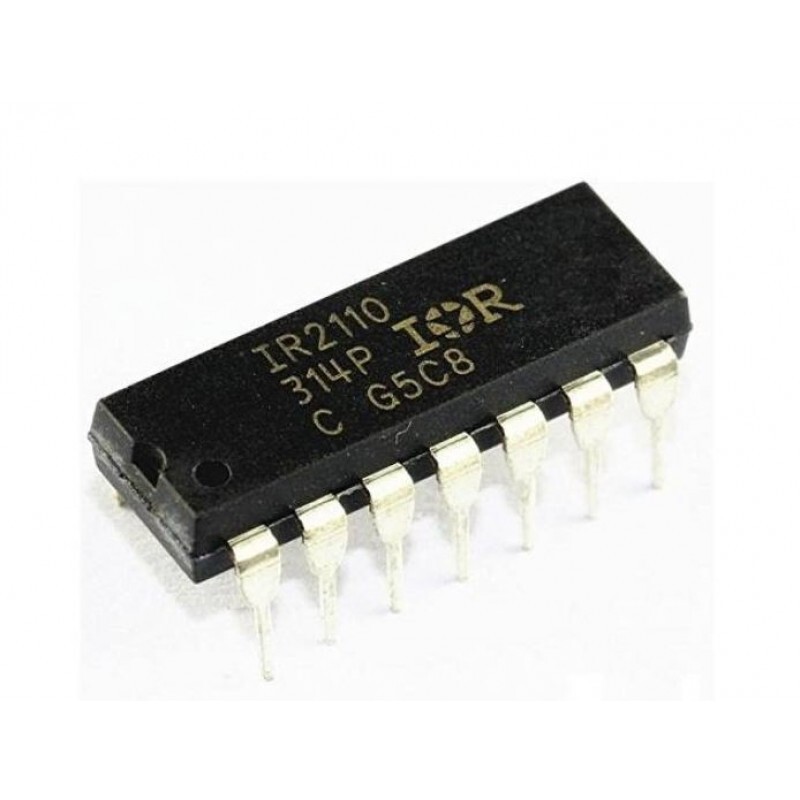

MOSFET Driver IC Specification

Features
Floating channel, high-side and low-side drive, under-voltage lockout

Response Time
Typical 120ns Rise/Fall Time

Usage
MOSFET/IGBT gate driving applications

Output
High and Low Side driving signals

Power Source
External DC supply

Input
TTL/CMOS Compatible

Components
Integrated Circuit (IC)

Operating Temperature
-40C to +125C

Power Supply
12V to 20V

Interface
14-pin DIP

Product Type
High-Speed Gate Driver IC

Application
Switch mode power supplies, motor drivers, inverters

Rated Voltage
500V

Supply Voltage
10V to 20V

Size
Standard DIP-14

Dimension (L*W*H)
Approx. 19.2mm x 6.3mm x 5mm

Function
High and Low Side MOSFET/IGBT Gate Driver

Color
Black

Weight
Approx. 1g

Thickness
Standard DIP-14

Current Rating
Up to 2A (peak output)

Frequency
Up to 500 kHz

Output Resistance
2 ohms

Package Type
Dual Inline Package (DIP-14)

Logic Input Voltage Range
3.3V, 5V, and 15V logic compatible

Peak Output Current
2A

Output Voltage (High/Low side)
10V to 20V

Quiescent Supply Current
Typical 0.5 mA

Bootstrap Operation
Yes (internal diode)

Propagation Delay
120ns typical

Lead Free Status
RoHS Compliant

Common Mode dV/dt Transient Immunity
>50V/ns

Mounting Type
Through Hole

MOSFET Driver IC Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
2 Days

Main Domestic Market
All India

About MOSFET Driver IC

Utilise this sizzling offer and grab yours today-the IR2110 High and Low Side MOSFET/IGBT Gate Driver IC is engineered for robust performance. With an exquisite design encapsulated in a standard DIP-14 package, this prime integrated circuit delivers towering capabilities ideal for high-speed switching applications up to 500V. Featuring a peak output current of 2A, logic compatibility with 3.3V/5V/15V, and exceptional common-mode transient immunity, it guarantees reliable operation in demanding environments. Its advanced bootstrap operation and RoHS compliance ensure efficiency and eco-friendliness. Perfect for switch mode power supplies, motor control, and inverter applications across India.

Unmatched Performance and Versatile Applications

The IR2110 High And Low Side MOSFET/IGBT Gate Driver IC offers distinct competitive advantages like 120ns typical propagation delay, 2A peak output, and high transient immunity (>50V/ns). It's a trusted solution for demanding environments, used as a prime choice in switch mode power supplies, inverters, and motor driver circuits. Its compatibility with both TTL and CMOS logic ensures smooth integration across diverse electronics, making it a favoured driver IC for innovative power management designs.

Sample Policy, Export Markets, and Packaging Assurance

Our policy enables customers to examine sample goods before purchase, allowing you to validate specifications before committing to bulk orders at the asking price. Shipped goods are securely packed to ensure product integrity. We primarily export to key markets in India and internationally. Exchange options are considered on a case-by-case basis, ensuring transparent and fair dealings. Each IC arrives in anti-static, moisture-proof packaging, supporting trusted international trade and reliable delivery standards.

FAQ's of IR2110 High And Low Side MOSFETIGBT Gate Driver IC 500V High-Speed Driver DIP-14:

Q: How can the IR2110 IC be used in power electronics projects?

A: The IR2110 gate driver IC is ideal for driving high and low side MOSFETs or IGBTs in switch mode power supplies, motor drivers, and inverter circuits, enabling efficient and reliable switching at high voltages.

Q: What are the main benefits of using the IR2110 in my designs?

A: Key benefits include high-speed performance, robust dV/dt immunity, internal bootstrap circuitry, compatibility with various logic levels, and reliable output for both high and low side gate driving, enhancing your circuit's efficiency and protection.

Q: Where is the IR2110 commonly applied?

A: The IR2110 is widely used in industrial and consumer electronics, including motor controllers, switch mode power supplies, and inverter circuits, where high efficiency and robust voltage isolation are necessary.

Q: What is the process for sampling or purchasing the IR2110 IC?

A: You can request a sample to test the product before placing a bulk order. Please contact us for the asking price and sample availability. Orders are shipped securely with the option for exchange upon meeting policy requirements.

Q: How does the IR2110 ensure reliable MOSFET/IGBT gate driving?

A: The IC utilises an internal bootstrap diode, provides under-voltage lockout, and maintains consistent operation even under high dV/dt conditions, ensuring dependable gate drive for both high and low side transistors.
