Motor Driver Integrated Circuit

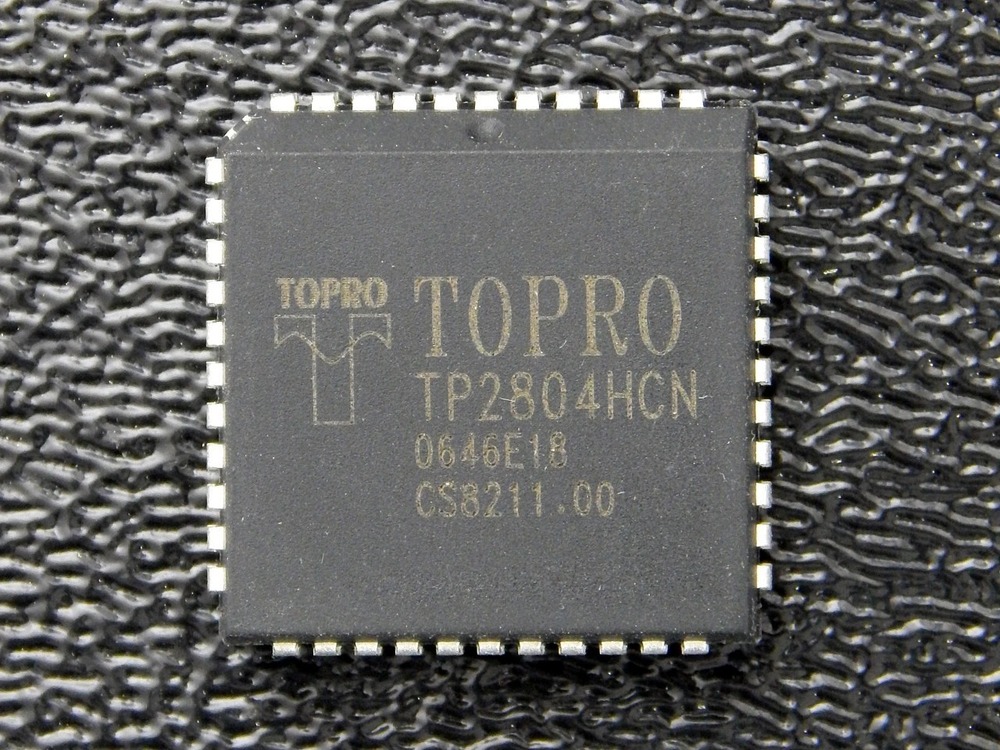

Name: TOPRO TP2804HC 44-Pin PLCC IC High-Speed Logic-Interface Controller IC
Brand: RADHIKA ELECTRONICS
Price: 198.0 INR
Availability: InStock

Price 198.0 INR/ Piece

Get a Price/Quote

MOQ : 50 Pieces

Motor Driver Integrated Circuit Specification

Operating Temperature
0C to 70C (Commercial)

Power Supply
DC

Components
Silicon IC, 44 pins

Usage
Logic Interface Control in Digital Systems

Input
Digital Signals

Power Source
External DC Supply

Interface
PLCC-44 Pin Interface

IP Rating
Not Rated

Output
Logic Level Signals

Features
High-speed logic interface, PLCC package, Suitable for microcontroller interface

Response Time
<10ns typical (logic operation)

Product Type
Integrated Circuit (IC)

Application
Microcontroller/Processor Interface, Data Communication Systems

Rated Voltage
5V DC (Typical)

Supply Voltage
4.5V to 5.5V

Size
44-Pin PLCC

Dimension (L*W*H)
16.6 x 16.6 x 3.75 mm (PLCC-44)

Function
High-Speed Logic-Interface Controller IC

Color
Black

Weight
Approx. 2.4g

Thickness
Approx. 3.75 mm

Current Rating
20mA (Max per I/O)

Frequency
High-Speed Operation (Exact value dependent on application)

Package Type
PLCC (Plastic Leaded Chip Carrier)

Product Code
TP2804HCN

Mounting Type
Surface Mount (SMD)

Pin Count
44 pins (PLCC)

Marking Code
TP2804HCN

ESD Protection
Standard for Logic ICs

Motor Driver Integrated Circuit Trade Information

Minimum Order Quantity
50 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
1 Days

Main Domestic Market
All India

About Motor Driver Integrated Circuit

Select the TOPRO TP2804HC 44-Pin PLCC IC for an exclusive, high-performance solution in modern logic interface control. This imposing controller IC, with its lustrous black PLCC package, is meticulously engineered for breathtaking speed, boasting a typical response time of under 10ns. Find seamless compatibility for microcontroller and processor interfaces, digital systems, and data communication networks. With robust ESD protection, a 5V DC typical supply, and high-speed operation, the TP2804HC guarantees reliable logic-level signaling for your most demanding digital applications.

Versatile Use and Distinct Features of the TOPRO TP2804HC

The TOPRO TP2804HC 44-Pin PLCC IC is used extensively for high-speed logic interface control in digital systems. Its extra features include PLCC-44 pin interface, robust ESD protection, and a swift response time below 10ns, ensuring optimal performance. It is tailored for microcontroller and processor interfaces, making it ideal for complex data communication systems. This IC is your go-to for applications that demand reliability, high speed, and seamless integration into advanced digital architectures.

Prompt Delivery, Ample Stock, and Accessible Samples for the TOPRO TP2804HC

Enjoy swift delivery times and a ready stock for the TOPRO TP2804HC 44-Pin PLCC IC to fulfill your project proposal amount efficiently. With sufficient supply ability, this exclusive IC is available for bulk outlays, ensuring your requirements are met, whether for development or production. Sample units can also be provided upon request, allowing for evaluation with minimal outlay prior to larger commitments-making your sourcing process smooth and dependable.

FAQ's of TOPRO TP2804HC 44-Pin PLCC IC High-Speed Logic-Interface Controller IC:

Q: How is the TOPRO TP2804HC typically used in digital systems?

A: The TOPRO TP2804HC is mainly employed as a high-speed logic-interface controller, facilitating reliable data communication between microcontrollers, processors, and digital subsystems.

Q: What benefits does the PLCC-44 pin interface design offer?

A: The PLCC-44 pin design enables convenient surface mounting (SMD) and offers secure, compact packaging for stable, high-speed connections in electronics hardware.

Q: When is the optimal time to incorporate the TOPRO TP2804HC into a project?

A: You should include the TP2804HC during the design or upgrade phase of digital systems that require swift, consistent logic-level signals and seamless controller integration.

Q: Where can I request a sample or buy in bulk?

A: Samples and bulk orders of the TOPRO TP2804HC are available through authorized distributors, suppliers, or wholesalers across India, ensuring flexible procurement.

Q: What is the process for integrating the TP2804HC into a digital communication system?

A: Integration typically involves surface mounting the PLCC-44 IC onto your system board and connecting the input/output pins per your digital signal requirements.

Q: What are the key usage advantages of the TP2804HC 44-pin PLCC IC?

A: Key advantages include high-speed operation (under 10ns response), robust ESD protection, and compatibility with 5V DC systems, making it suitable for demanding digital applications.
