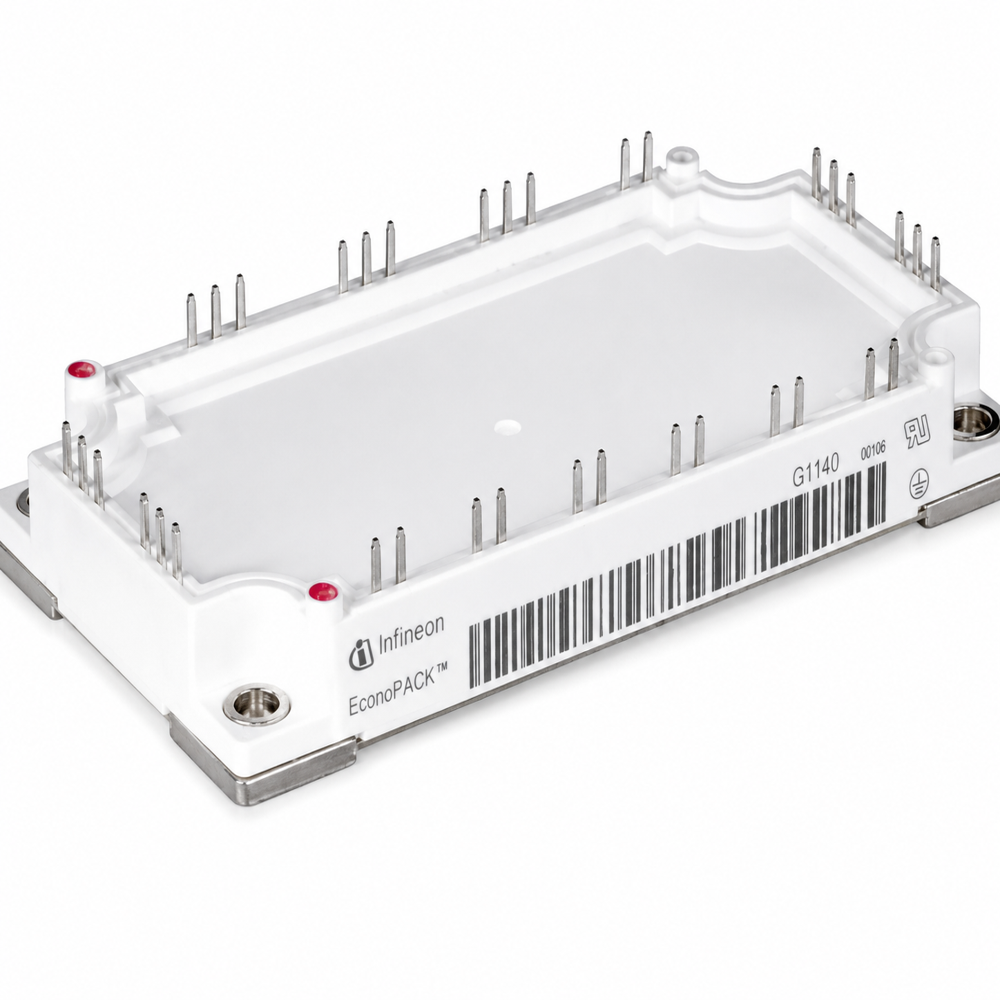

FP50R12KE3 Igbt Modules

Get a Price/Quote

MOQ : 1 Piece

FP50R12KE3 Igbt Modules Specification

Interface
Pluggable Pin-type

Components
IGBT, Freewheeling Diode

Power Source
DC Power Source

Input
Control Signal from Gate Driver

Power Supply
DC

Usage
Industrial Motor Drives, Power Supplies, Inverters

Thermal Conductivity
Optimized for Power Modules

Operating Temperature
-40C to +150C Junction Temperature

Response Time
Fast Switching Performance

Features
Low Power Loss, High Reliability, EconoPIM Package

IP Rating
Unsealed/Standard Module

Output
Switched Power Output

Product Type
IGBT Module

Application
Drives, UPS, Solar Inverters, Servo Drives

Rated Voltage
1200V

Supply Voltage
1200V Max

Size
Standard EconoPIM Module Size

Dimension (L*W*H)
107 mm x 62 mm x 17 mm

Function
Insulated Gate Bipolar Transistor (IGBT) Power Module

Color
White

Weight
~200g

Warranty
NA

Current Rating
50A

Capacity
50A Max Continuous Collector Current

Thickness
Approximately 17 mm

Frequency
Up to 20 kHz switching

Life Expectancy
>10 years under rated conditions

Mounting Type
Screw / Solder pin

Module Name
FP50R12KE3

Collector Current (Ic)
50A

Forward Voltage Drop
Low Vce(sat)

Package Type
EconoPIM

Collector-Emitter Voltage (Vces)
1200V

Reverse Recovery Time
Short, optimized for fast switching

Technology
Trench/Field Stop IGBT

Isolation Voltage
2500V (as per EconoPIM specification)

Gate Emitter Voltage
20V max

FP50R12KE3 Igbt Modules Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Days

About FP50R12KE3 Igbt Modules

The FP50R12KE3 is a high-performance 1200V, 50A IGBT Power Module manufactured by Infineon Technologies. It belongs to the EconoPIM 3 family and is designed for industrial motor drives, inverter systems, UPS equipment, welding machines, and power conversion applications. It integrates a three-phase input rectifier, IGBT inverter, brake chopper, and NTC temperature sensor into a single compact module, reducing component count and simplifying system design.

The module uses Infineon's IGBT3 - E3 (TRENCHSTOP) technology, providing low switching losses, excellent thermal performance, and high reliability for demanding industrial environments.

Exceptional Power Handling and Efficiency

The FP50R12KE3 module delivers outstanding electrical performance, supporting up to 50A of collector current and a high voltage rating of 1200V. Thanks to Trench/Field Stop technology, users benefit from fast switching speeds and reduced conduction losses, boosting system efficiency and response times across a range of power electronics applications.

Reliable and Versatile Industrial Applications

This module is perfectly suited to demanding environments such as industrial drives, servo systems, UPS units, and solar inverters. Its robust EconoPIM package, combined with high isolation voltage and excellent thermal conductivity, ensures safe and consistent operation under continuous loads and variable conditions.

User-Friendly Installation and Maintenance

Designed for ease of use, the FP50R12KE3 can be mounted via screw or solder pins, and its pluggable pin-type interface allows straightforward integration into new or existing systems. The compact footprint and standardized dimensions facilitate quick replacement, minimizing downtime for routine servicing or upgrades.

FAQ's of FP50R12KE3 Igbt Modules:

Q: How is the FP50R12KE3 module installed and connected?

A: The module is designed for flexible installation, using screw or solder pin mounting options. Its pluggable pin-type interface allows for easy integration into standard EconoPIM-sized slots, streamlining the connection of control signals and power lines.

Q: What are typical usage scenarios for the FP50R12KE3 IGBT module?

A: Common applications include industrial motor drives, solar inverters, uninterruptible power supplies (UPS), and servo drive systems. The module excels in environments requiring high voltage switching with fast response times and reliable continuous operation.

Q: When should I consider using the FP50R12KE3 in my system design?

A: You should use this module when you require high efficiency, fast switching performance, and robust reliability in systems up to 1200V and 50A. Its Trench/Field Stop technology and low forward voltage drop are ideal for improving energy savings and system longevity.

Q: Where does the FP50R12KE3 stand out compared to other power modules?

A: Its EconoPIM package, excellent thermal conductivity, and high isolation voltage offer superior safety and cooling performance. Additionally, the module's fast switching capability and long expected lifetime (>10 years under rated conditions) distinguish it for demanding applications.

Q: What is the process for maintaining or replacing the FP50R12KE3 module?

A: Routine maintenance is minimal due to its robust design and high reliability. If replacement is needed, the standardized EconoPIM dimensions and pluggable interface enable quick and straightforward removal and reinstallation, reducing potential system downtime.

Q: What benefits do users gain from the FP50R12KE3 module's design features?

A: Users benefit from high efficiency, low switching losses, long-term reliability, and safety. The module's optimized thermal and electrical properties help maintain stable performance and support compact system layouts in industrial power applications.
