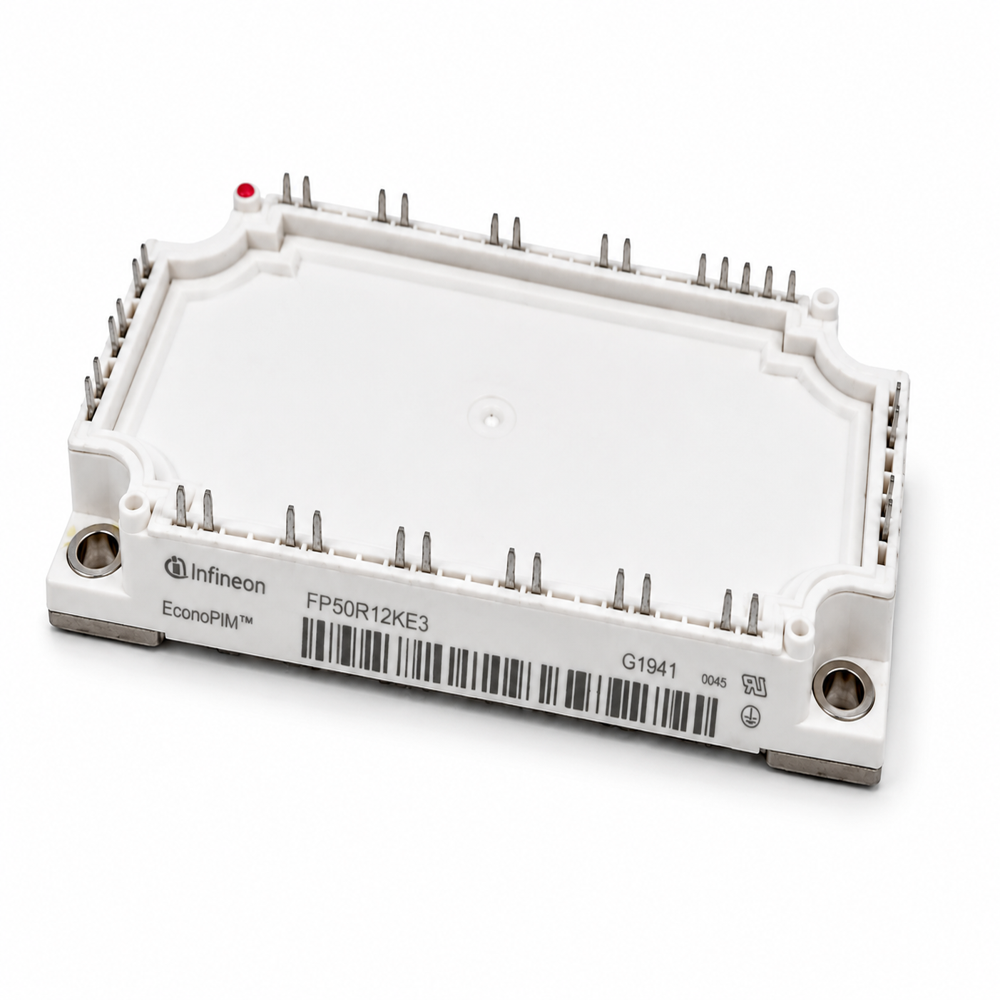

Infineon IGBT Power Module

Name: Infineon IGBT Power Module
Brand: RADHIKA ELECTRONICS
Price: 2970.0 INR
Availability: InStock

Price 2970.0 INR/ Piece

Get a Price/Quote

MOQ : 20 Pieces

Infineon IGBT Power Module Specification

Input
Gate Control Signal

Components
GBT + Free-Wheeling Diodes

Power Supply
DC

Interface
Gate / Power Terminal

Output
High-Power Switching Output

Usage
Industrial Power Control

Product Type
IGBT Module

Power Rating
Application Dependent

Application
Industrial

Rated Voltage
1200 Volt (V) Volt (V)

Dimension (L*W*H)
94 34 14 Millimeter (mm)

Function
High-Power Switching

Color
White

Weight
180 Grams (g)

Material
Semiconductor

Conductor
Semiconductor

Current Rating
25A

Infineon IGBT Power Module Trade Information

Minimum Order Quantity
20 Pieces

Payment Terms
Cash Advance (CA)

Supply Ability
100 Pieces Per Week

Delivery Time
2 Days

Main Domestic Market
All India

About Infineon IGBT Power Module

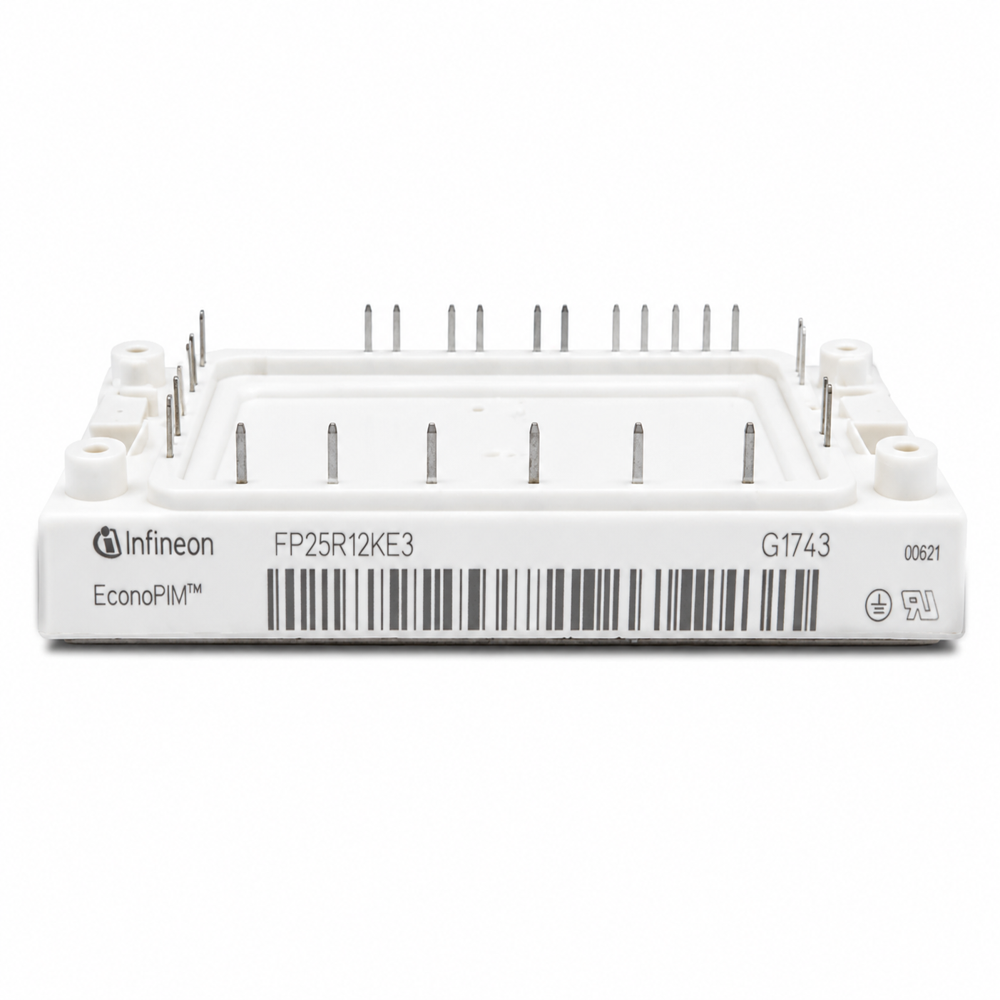

The Infineon FP25R12KE3 is a 1200V, 25A IGBT power module designed for high-performance power switching and three-phase inverter applications. It is part of Infineon's IGBT module family and is intended for demanding industrial power-electronics applications.

The module combines IGBT switching technology with free-wheeling diode structures to provide controlled switching of high-voltage DC power into AC or other controlled power waveforms. Its 1200V voltage rating provides a suitable margin for many high-voltage inverter and motor-drive applications, while the 25A current rating makes it suitable for medium-power switching systems.

The FP25R12KE3 is particularly suitable for three-phase motor drives, variable-frequency drives (VFDs), industrial inverters, UPS equipment, power conversion systems and automation equipment.

For reliable operation, the module should be installed with suitable gate-driver circuitry, electrical protection and thermal management. A properly sized heat sink is important because IGBT switching and conduction losses generate heat during operation.

Key Features

1200V collector-emitter voltage rating
25A collector current class
Infineon IGBT module
IGBT3 technology
Three-phase inverter configuration
Integrated free-wheeling diode structure
High-voltage switching capability
Suitable for motor-drive applications
Designed for industrial power electronics
Requires appropriate heat dissipation

Applications

3-Phase Inverters
AC Motor Drives
Variable Frequency Drives (VFD)
Industrial Automation
UPS Systems
Power Conversion Equipment
Industrial Motor Controllers
Welding Equipment
Renewable-Energy Inverters
Industrial Power Supplies
High-Voltage Switching Systems

Infineon IGBT, Infineon IGBT Module, Infineon Power IGBT, IGBT Power Module, IGBT Module, Power Semiconductor Module, Industrial IGBT Module, High Power IGBT, IGBT Semiconductor, Inverter IGBT, Motor Drive IGBT, Power Electronic Module, Industrial Power Module

Efficient High-Power Switching

By combining gate bipolar transistors with free-wheeling diodes, this Infineon IGBT Power Module achieves rapid and reliable switching required in demanding industrial environments. Its high-current handling and robust voltage tolerance make it ideal for diverse industrial power control applications.

Tailored for Industrial Applications

Designed specifically for use in factories and large-scale industrial settings, this module integrates seamlessly into complex systems. Its dimensions (94 x 34 x 14 mm) and solid construction facilitate easy installation and long operational life, even in harsh conditions.

Advanced Semiconductor Design

The use of semiconductor materials throughout ensures high efficiency, heat resistance, and stability. This advanced construction enhances overall system reliability and reduces maintenance needs, delivering consistent high-power output.

FAQ's of Infineon IGBT Power Module:

Q: How is the Infineon IGBT Power Module used in industrial applications?

A: The module is primarily used for high-power switching in industrial power control systems. It handles significant currents and voltages, enabling efficient and precise control of motors, inverters, and other power equipment.

Q: What are the benefits of integrating GBT and free-wheeling diodes in this module?

A: Integrating GBTs with free-wheeling diodes enhances switching efficiency, reduces energy losses, and enables reliable performance under continuous operation, which is essential for demanding industrial processes.

Q: When should I choose this module for industrial power control?

A: Select this module when your application demands high-current (up to 25A), high-voltage (up to 1200V) switching, particularly for tasks involving frequent or rapid switching cycles in environments that require robust and reliable components.

Q: Where can the Infineon IGBT Power Module be sourced?

A: This power module is available through manufacturers, suppliers, and wholesalers across India, making it widely accessible for industrial procurement needs.

Q: What is the process of connecting the module within a power system?

A: The module is integrated into the circuit using its gate and power terminals. A gate control signal is applied, allowing the module to switch power efficiently across the load as required by the application.

Q: How does the semiconductor material benefit overall module performance?

A: Semiconductors offer excellent thermal and electrical properties, resulting in lower power losses, higher efficiency, and improved reliability, which are critical for continuous industrial operation.

Q: What makes this IGBT module suitable for industrial environments?

A: Its robust design, high voltage and current ratings, compact dimensions, and reliable switching function enable the module to thrive in challenging industrial settings where durability and efficiency are paramount.
