Differential Line Driver IC for Communication Applications

About Differential Line Driver IC for Communication Applications

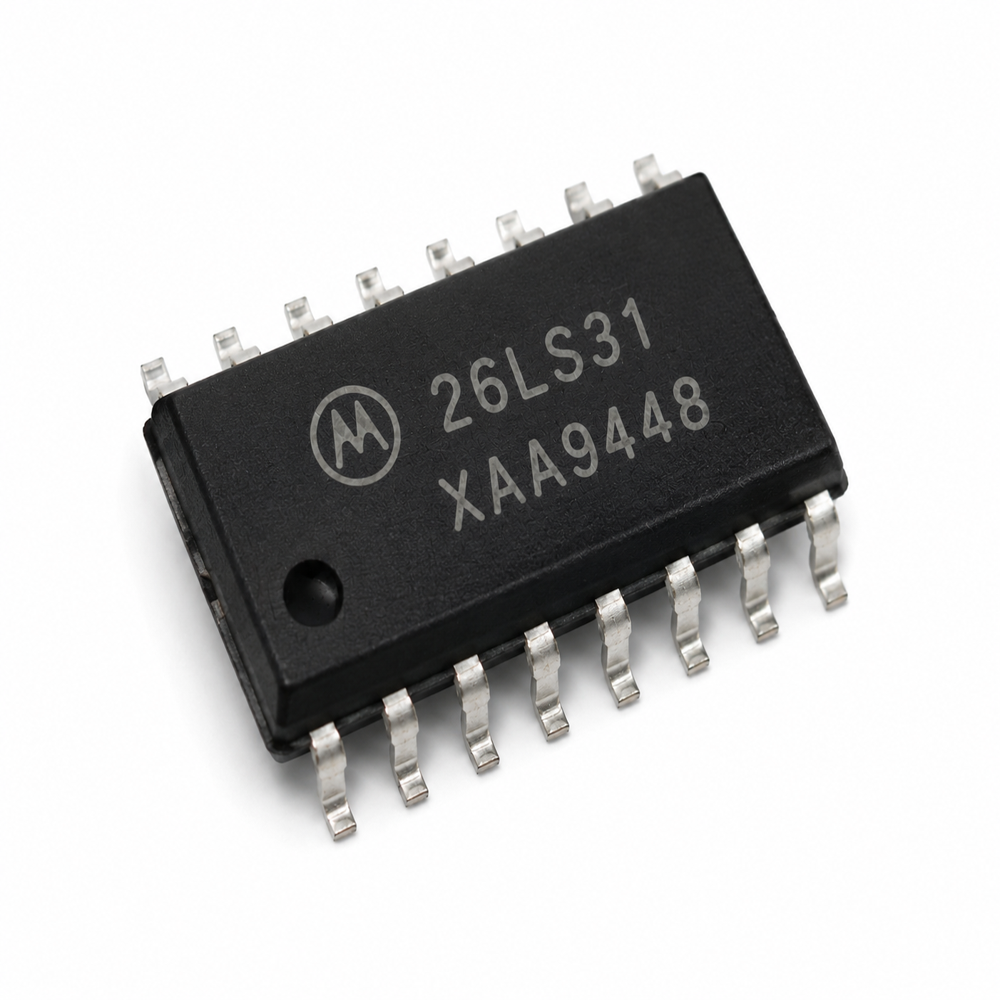

The 26LS31 IC is a high-speed quad differential line driver designed for digital data transmission applications. It contains four independent differential line-driver circuits in a single 16-pin package and is commonly used for transmitting digital signals over longer distances with improved noise immunity.

The IC is designed for applications requiring differential signal transmission, such as RS-422-type interfaces, industrial control systems, communication equipment, computer peripherals, and electronic control boards. Its differential outputs help provide reliable signal transmission in electrically noisy environments.

The 26LS31 is suitable for use with compatible digital logic systems and can be used as a replacement component in electronic circuits where the same device specifications and pin configuration are required. It is particularly useful for PCB repair, maintenance, and electronic spare-part applications.

Key Features

• Product: 26LS31 Quad Differential Line Driver IC
• Function: Differential Line Driver
• Channels: 4 Independent Drivers
• Interface: Differential / RS-422 compatible
• Package: 16-Pin IC
• Designed for high-speed digital signal transmission
• Suitable for long-distance digital data communication
• Improved noise immunity through differential signaling
• Suitable for industrial and electronic control applications
• Useful for PCB repair and replacement
• Compact integrated-circuit design

Applications

• RS-422 communication interfaces
• Industrial control equipment
• Digital communication systems
• Computer and peripheral interfaces
• Motion-control systems
• Electronic control boards
• Data transmission circuits
• Automation equipment
• PCB repair and replacement applications
• Compatible embroidery machine control boards
•
