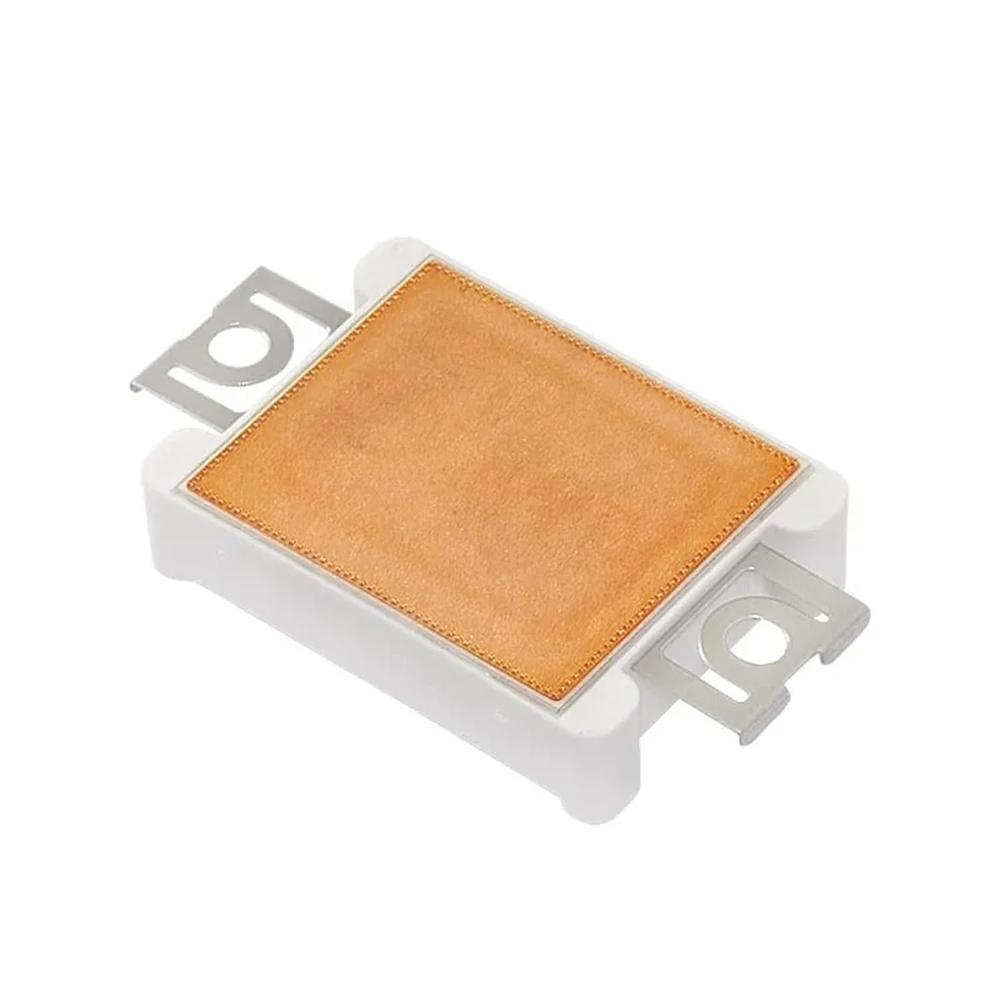

7MBR10VKC120 1200V 10A 3-Phase IGBT Power Module

Send Inquiry

Request To Call Back

7MBR10VKC120 1200V 10A 3-Phase IGBT Power Module

Price 3780.00 INR/ Piece

Get a Price/Quote

MOQ : 20 Pieces

7MBR10VKC120 1200V 10A 3-Phase IGBT Power Module Specification

Components
IGBT Chip, Diode, Substrate, Case

Input
Control Signal (Gate)

Power Supply
DC

Response Time
Fast switching, typically <1s

Interface
Press-fit/Screw terminal

Output
High Current Switching

Thermal Conductivity
Copper base for effective heat dissipation

Operating Temperature
-40C to +150C

Features
High efficiency, robust construction, suitable for high power applications

Usage
Power electronics, motor drives, inverter systems, UPS

Power Source
Electrical

Product Type
IGBT

Application
IGBT Modules, 6th Generation V series

Rated Voltage
1200V

Supply Voltage
Up to 1200V DC

Size
Standard power module casing

Dimension (L*W*H)
Approximately 118mm 62mm 18mm

Function
Insulated Gate Bipolar Transistor (IGBT) power module

Color
White/Gold (Top Plate)

Weight
Approx. 350g

Warranty
NA

Capacity
Current Handling 10A

Current Rating
10A

Frequency
Switching Frequency up to 20kHz

Module Configuration
7-pack (seven IGBTs in one module)

Isolation Voltage
2500V AC/minute

Model Number
7MBR10VKC120-50

Gate-Emitter Voltage (Vge)
+/-20V max

RoHS Compliant
Yes

Mounting Type
Chassis mount

Insulation
Isolated base

Gate Threshold Voltage
4.5V - 6.5V

Terminal Type
Screw terminal

Typical Applications
AC motor control, motion/servo drives, renewable energy inverters, and industrial equipment

Collector Current (Ic)
10A

Cooling
Base plate (heat sink mounting required)

Collector-Emitter Voltage (Vce)
1200V max

Package/Case
Industry standard IGBT module case

7MBR10VKC120 1200V 10A 3-Phase IGBT Power Module Trade Information

Minimum Order Quantity
20 Pieces

Payment Terms
Cash in Advance (CID)

Delivery Time
2 Days

Sample Available
No

Main Domestic Market
All India

About 7MBR10VKC120 1200V 10A 3-Phase IGBT Power Module

The Fuji Electric 7MBR10VKC120-50 Intelligent Power Module is a compact 1200V, 10A V-Series Power Integrated Module (PIM) engineered for efficient motor control and industrial power conversion. It integrates a three-phase IGBT inverter, converter diode bridge, dynamic brake circuit, and temperature sensing into a single PCB-mount package, reducing circuit complexity and improving system reliability. With its low saturation voltage, fast switching performance, compact footprint, and robust thermal characteristics, the module is well suited for variable frequency drives, servo amplifiers, UPS systems, CNC equipment, HVAC systems, industrial automation, textile and embroidery machinery, and other compact inverter applications where dependable, energy-efficient operation is required.

Versatile Power Switching for Industrial Needs

The 7MBR10VKC120-50 IGBT module is expertly crafted for demanding industrial power switching. Its robust 7-pack configuration and 1200V voltage support various high-power applications, including renewable energy inverters and motion control systems. The efficient copper base ensures superior thermal management, and the isolated base provides reliable insulation for enhanced safety and durability.

High Efficiency and Reliable Design

This IGBT module offers fast switching responses and superior efficiency, making it ideal for frequent duty cycle uses, such as inverter systems and uninterruptible power supplies (UPS). The module's screw terminals and press-fit interface streamline installation and ensure secure electrical connections, while RoHS compliance supports environmentally conscious deployments.

Flexible Mounting and Secure Operation

Designed to fit standard power module cases, the 7MBR10VKC120-50 allows straightforward integration with base plate mounting, requiring a heat sink for optimum performance. The industry-standard chassis mount and screw terminal configuration make it suitable for retrofitting and new equipment alike, providing flexibility for engineers and designers.

FAQ's of 7MBR10VKC120-50 IGBT MODULE:

Q: How is the 7MBR10VKC120-50 IGBT module typically used in industrial applications?

A: The 7MBR10VKC120-50 is commonly employed in AC motor controls, motion and servo drives, renewable energy inverters, and industrial equipment where high power switching and efficiency are needed. Its 7-pack design supports complex drive systems requiring precise and reliable current control.

Q: What installation process should be followed for the 7MBR10VKC120-50?

A: To install this IGBT module, mount it onto a chassis or heat sink using the isolated base and screw terminals. Ensure proper heat dissipation by securing an appropriate heat sink, and connect control and power lines to the screw/press-fit terminals as specified in the datasheet.

Q: Where does the 7MBR10VKC120-50 offer the most benefit?

A: The module excels in high-power environments like industrial automation, renewable energy conversion, and heavy-duty motor drives, offering high efficiency, fast response, and thermal stability, making it especially beneficial for applications with frequent switching and high load demands.

Q: What are the key electrical ratings of this IGBT module?

A: The key ratings include a maximum collector-emitter voltage (Vce) of 1200V, collector current (Ic) of 10A, gate threshold voltage between 4.5V and 6.5V, and gate-emitter voltage (Vge) up to 20V. The isolation voltage is rated at 2500V AC for one minute.

Q: How does the module handle heat dissipation during operation?

A: The 7MBR10VKC120-50 uses a copper base plate for efficient thermal conductivity. For continuous reliable operation, it must be mounted on a compatible heat sink to dissipate heat generated during high-current switching and prevent overheating.

Q: What makes the 7MBR10VKC120-50 suitable for power electronics and inverter systems?

A: Its fast switching speed (up to 20kHz), high efficiency, robust construction, and ability to handle up to 1200V DC supply and 10A current make it ideal for power electronics, inverter systems, and motor drives demanding stability and durability in performance.

Q: When is maintenance typically required for this module?

A: Routine maintenance is not typically needed for the module itself, but periodic inspections of thermal interface materials, screw terminal tightness, and heat sink cleanliness are advisable to ensure optimal thermal management and secure electrical connections during operation.
