8 Pin Integrated Circuit for Electronic Applications

About 8 Pin Integrated Circuit for Electronic Applications

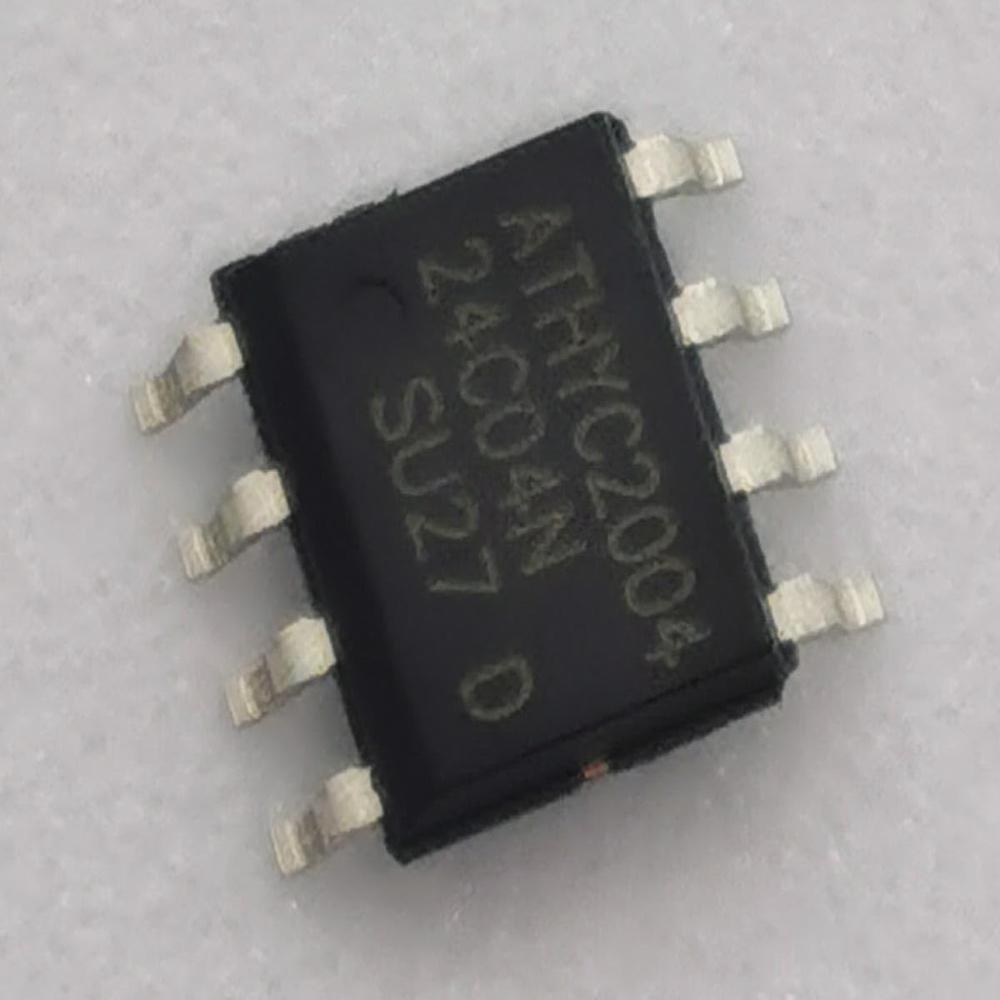

The 24C04N IC is a non-volatile IC serial EEPROM memory IC designed for storing data, configuration parameters, settings, identification information, and other small amounts of digital data. The 24C04 memory family provides 4K-bit memory capacity, organized as 512 8 bits, allowing data to remain stored even when the main power supply is removed.

This IC communicates with a microcontroller or other compatible digital controller through the two-wire IC interface, using SDA and SCL for serial data communication. Depending on the specific manufacturer and variant, operating voltage and electrical specifications can differ, so the exact datasheet should be checked before installation.

The 24C04N is suitable for electronic control boards, embedded systems, industrial equipment, display systems, communication equipment, and other applications where small amounts of non-volatile memory are required. Its compact 8-pin package makes it convenient for PCB mounting and replacement applications.

Key Features

• Memory Type: Serial EEPROM
• Memory Capacity: 4K-bit
• Organization: 512 8 bits
• Interface: IC / 2-wire serial interface
• Package: 8-pin package, depending on variant
• Non-volatile memory: Data retained without power
• Suitable for storing configuration and control data
• Suitable for PCB and electronic control-board applications
• Useful as a replacement for compatible 24C04-series EEPROM ICs

Common Applications

• Electronic control boards
• Industrial control systems
• Microcontroller-based circuits
• Configuration-data storage
• Memory backup applications
• Display and communication equipment
• Embedded electronic systems
• Compatible embroidery machine control boards
•
